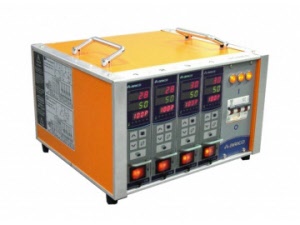

TC5F Hot Runner Controller 4 Zone

Features:

  • Dual SV temperature control
  • Tri lines LED display
  • Auto / Manual function
  • PID auto temperature control
  • Selectable two thermocouple types ( J or K )
  • Selectable two temperature scales ( °C or °F )
  • Selectable six alarm modes
  • Selectable two trigger output modes ( Zero cross or phase angle )
  • Fuse break indicator
  • Electric current, output percentage, frequency for power display function
  • Heater breaks, shorts out, wears out to detect and examine the function
  • Thermocouple break and inverse detect
  • RS485 communication: ASCII and RTU molding

Specifications:

  • Power input: 220Vac ± 20 %
  • Power frequency: 50 / 60 Hz
  • Power consumption: 7 W
  • Input impedance: 3M Ω
  • Output wattage: 3600W ( Max )、15A / 240Vac ( Every module )
  • Storage temperature: -20 ~ 70 °C
  • Working temperature: 0 ~ 50 °C
  • Work Humidity: 10 ~ 80 % RH ( Non-condensing )
  • Control accuracy:± 0.25 %
  • Measurement accuracy:± 0.25 %
  • K TYPE Thermocouple range: 0 ~ 700°C( 0~1200°F )
  • J TYPE Thermocouple range: 0 ~ 500°C( 0~900°F )
