Specifications:

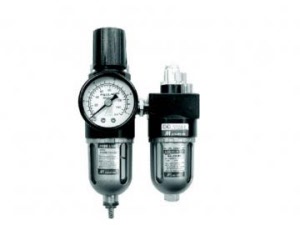

• Model: MACP 200
• Components: MAFR 200, MAL 200
• Bore No.: 8A
• Port size: PT 1 / 4
• Medium: Air
• Operating pressure range: 0 ~ 9.9kgf / cm2 ( 0 ~ 0.99MPa )
• Proof pressure: 15kgf / cm2 ( 1.5MPa )
• Regulation pressure range: 0.5 ~ 8.5kgf / cm2 ( 0.05 ~ 0.85MPa )
• Ambient temperature: -5 ~ +60 °C ( No freezing )
• Filtration: Standard：40μm
• Option: 5μm
• Lubricating oil capacity: 25c.c
• Min. flow for oil drip: 50 / min
• Recommended lubricating oil: Turbine oil ISO-VG32
• Attachment: Pressure gauge, bracket
• Weight: 606 g
