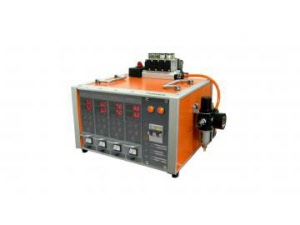

TC5V Valve Gate Controller 4 Zone

Features:

  • Multiple Touch-off signal options ( AC220 / 110 / DC24 / Switch type )
  • Multiple output voltage options ( AC220 / 110 / DC24 / Relay / MOS Relay )
  • Time display is adjustable to the first digit after the decimal point
  • Stopwatch can be either accumulative or countdown
  • Three optional control modes
  • Optional pressure retaining mode
  • MOS Relay extension of working life
  • Mechanical Relay ( up to 600 mA ) is optional

Specifications:

  • Panel measurement: 50 × 176 mm
  • Display: 7-Section tube 0.4 × 4 × 2
  • Power switch: manual dial type
  • Input power: AC220 ( 50 / 60Hz )
  • Trigger voltage: ( Must jump JP ), AC110 ( 50 / 60Hz ), AC220 ( 50 / 60Hz ), DC24, Switch ( DC24 )
  • Output power: ( must jump JP ), AC110 ( RELAY / electronic switch 4VA ), AC220 ( RELAY,2A / electronic switch 600 mA ),DC24 ( RELAY / electronic switch 4W ), RELAY-2A / electronic switch-600 mA ( either one )
  • Keys: 5 keys ( select / confirm, manual output, plus, minus, time setting )
  • Function display lamps: A / B mode lamp, OPEN lamp, SIGNAL lamp, pressure retaining lamp, manual output lamp
