tc5e hot runner controller-6 zone large

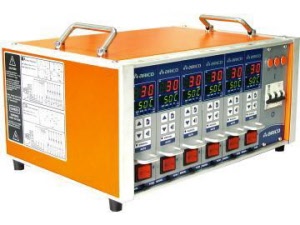

TC5E Hot Runner Controller 6 Zone

Features:

  • Dual SV temperature control
  • Dual lines LED display
  • Unit display
  • Auto / Manual function
  • PID auto temperature control
  • Selectable two thermocouple types ( J or K )
  • Selectable two temperature scales ( °C or °F )
  • Selectable six alarm modes
  • Selectable two trigger output modes ( Zero cross or phase angle )
  • Fuse break indicator
  • Power frequency auto-detect
  • Thermocouple break and inverse detect

Specifications:

  • Power input: 220Vac ± 10 %
  • Power frequency: 50 / 60 Hz
  • Power consumption: 2.5W ( each module )
  • Input impedance: 2M Ω
  • Output wattage: 3600W, 15A / 240Vac
  • Storage temperature: -20 ~ 70 °C
  • Work temperature: 0 ~ 50 °C
  • Work humidity: 10 ~ 80 % RH. ( non-condensing )
  • Control accuracy: ± 0.25 % FS
  • Measure accuracy: ± 0.25 % FS
  • K TYPE Thermocouple range: 0 ~ 700 °C ( 0~999 °F )
  • J TYPE Thermocouple range: 0 ~ 500 °C ( 0~900 °F )
